36 STANDARD 15000 CFM SPECIFICATIONS
36 STANDARD OPEN
36 STANDARD AND PIPE
36 STANDARD AND PIPE
- AMBIENT AIR CLEANER
- Voltage: 208v, 230v, 480v, 575v
- Motor: 10 HP premium grade
- AMPs-FLA: 208v (27), 230v (25), 480v (12.5), 575v (10)
- Drive: Belt and pulley system with auto-tensioner
- CFM: 15000
- Weight: 770 lbs.
- Dimensions: 39” L x 91” W x 88” H
- Construction: Steel, aluminum, bolted, riveted, sealed
- Finish: White two-coat powder coat
- Applications: Clean and circulate, whole shop filtration
- Db: 68
- Standard Features: Easy, no-tool filter changes
- Balanced/Machined drive assembly parts
- Balanced blower
- Grease-able bearings with easy access grease fitting located outside the unit
- Comes standard with spark arrestors
- Many different filter options to suit your needs
- Easy-hang uni-strut mounting options available
- NOTE: This unit can be mounted in vertical position ONLY
- Air quality improving air filter system FOR A SAFER FACTORY
36 STANDARD AND PIPE
36 STANDARD AND PIPE
36 STANDARD AND PIPE

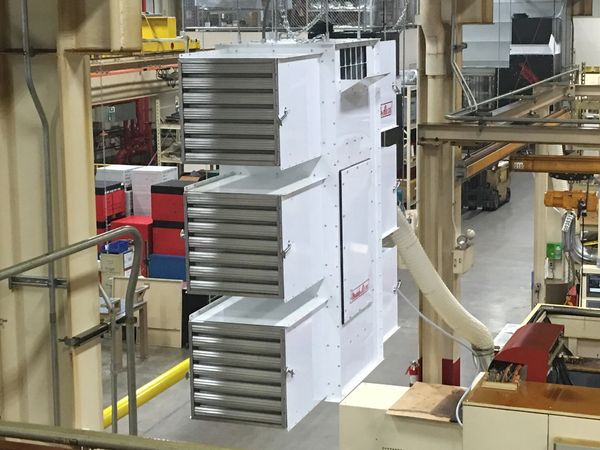

ONLY 1 HOUR OF FILTER MAINTENANCE PER YEAR!! At nearly 8 feet tall, 15,000 CFM and having 6 intake s, this unit is among the largest most powerful ambient dust collector units in the world, second only to our SUPER VEE. These units are used where the the exhaust is always piped away from the unit, creating a local low pressure area around the unit. This forces unwanted particles to the unit and away from people. With multiple units, the serviceable square footage of filtration is limitless, even millions of square feet! All applications from SILICA and SMOKE to CARDBOARD DUST, THIS UNIT TAKES CARE OF IT! EASILY HAVE A SAFER FACTORY
