36VT 15000 CFM SPECIFICATIONS
36VT MOUNTED VERTICLE

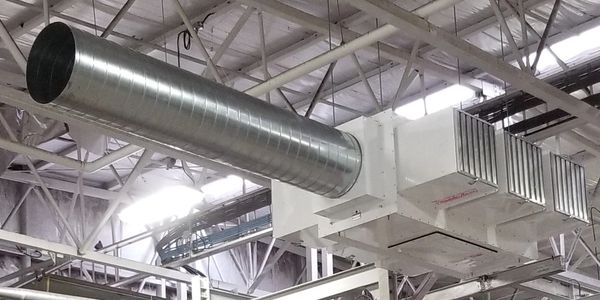

36VT MOUNTED HORIZONTAL
36VT MOUNTED HORIZONTAL
- AMBIENT AIR CLEANER
- Voltage: 208v, 230v, 480v, 575v
- Motor: 10 HP premium grade
- AMPs-FLA: 208v (27), 230v (25), 480v (12.5), 575v (10)
- Drive: Belt and pulley system with auto-tensioner
- CFM: 15000
- Weight: 770 lbs.
- Dimensions: 39” L x 91” W x 88” H
- Construction: Steel, aluminum, bolted, riveted, sealed
- Finish: White two-coat powder coat
- Applications: Clean and circulate, whole shop filtration
- Db: 68
- Standard Features: Easy, no-tool filter changes
- Balanced/Machined drive assembly parts
- Balanced blower
- Grease-able bearings with easy access grease fitting located outside the unit
- Comes standard with spark arrestors
- Many different filter options to suit your needs
- Easy-hang uni-strut mounting options available
- NOTE: This unit can be mounted in vertical or horizontal position
- Air quality improving air filter system FOR A SAFER FACTORY
36VT MOUNTED HORIZONTAL
36VT MOUNTED HORIZONTAL
36VT MOUNTED HORIZONTAL
